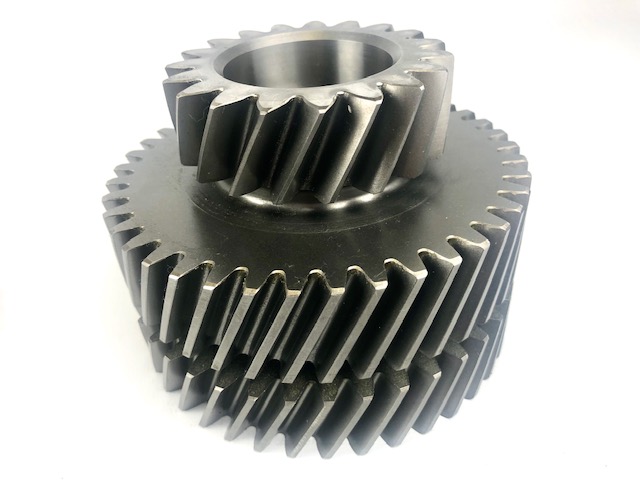

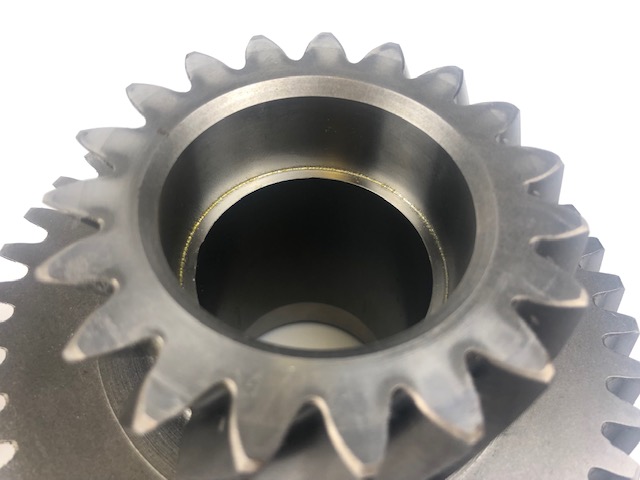

This is a very popular gear set, especially for those with a TD5 90/110 or Tdi which revs excessively on the motorway. This gear set will enable you to raise your transfer case gearing by 15%, by replacing the gears in the exising 1.410 ratio transfer box with new 1.222 gears, as used in the Disco. This will not only reduce your revs but also reduce noise. This change will not effect Low Range and will leave your Speedo reading true.
This kit offers a simple and effective change to your vehicle and there is nothing to go wrong.

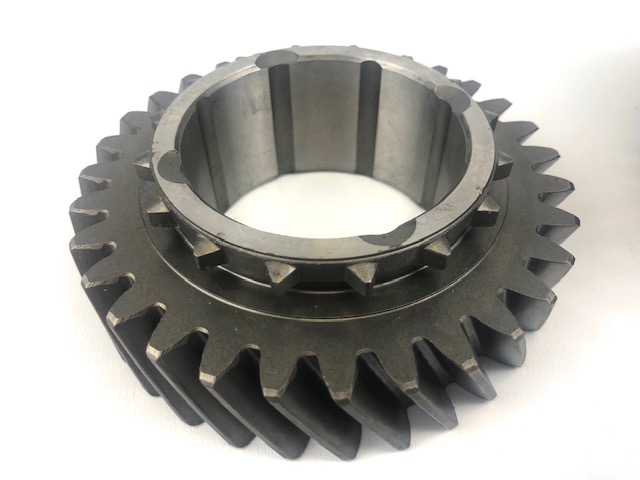

These have the thinner type engagement teeth on the high gear and so will fit the LT230’s with serial number XXD226368E and later.
To be able to fit this ratio to an LT230 with a serial number before XXD226368E, you will also need FTC1084 (low range gear) and FTC382 (high/low hub). This is due to having thicker engagement teeth on the high gear (photo in the description). If you require these additional parts, please select this in the dropdown.
Please see the photo below to help you identify your engagement teeth, note the upper teeth are the later, thinner type and the lower teeth are the earlier, thicker type.
For some transfer boxes an additional gear will be required in order to fit this kit. These gear kits are made to accept the 26 tooth input gear.
See below guide :
22D Sx C to 22D Sx G, you can reuse old input gear
28D, upto 28D308262E, you can reuse the old input gear
28D, from 28D308263E, you will need a new input gear FTC5089
36D, you will need a new gear, FTC4962
41D, 42D, 61D, 69D, 70D, (all Disco 2), you will need a new gear, FTC4962
43D, (TD5 Defender), you can reuse old input gear
80D and 81D, (all TDCi Defender), you will need a new gear, FTC4962
Note these cannot be fitted to the early suffix A or B LT230’s.
Please advise your serial number on ordering and we will contact you if it is required.
Videos
Where to find the serial number on a LT230
Shipping Costs
In order to calculate your shipping costs you will need to put the items in your shopping basket and confirm your delivery address. Once you have entered these details a shipping quote will be generated. Please do not proceed to the payment stage unless you are ready to order.
Installation

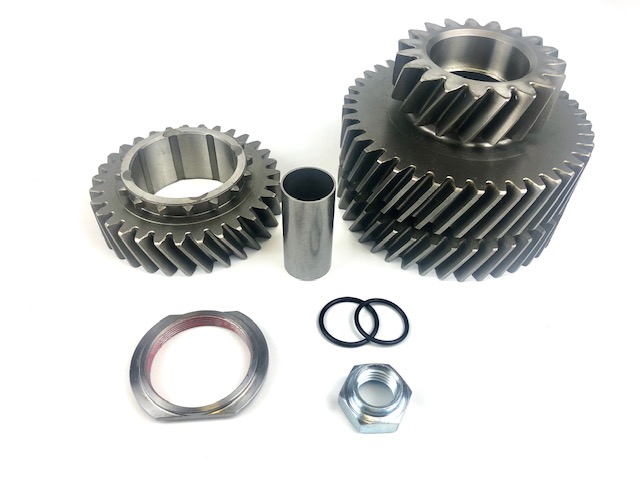

1) you should have these parts :
2) remove sump,
3) remove hi/lo housing
4) remove the 8 bolts holding the front housing on,
5) remove 30mm intermediate pin nut
6) remove pin
7) remove front housing,
8) remove detent screw
9) remove spring and ball,
10) remove diff assembly,
11) remove large nut,
12) press off top bearing,
13) refit low gear and the inner selector hub, note the outer groove goes to the low gear side,
14) before you fit the outer selector hub and new gear pls check the selector collar drops on the gear, sometimes the sharp edges will stp it dropping over the dog teeth like this :
15) if it doesn’t drop on just knock it on with a mallet and then it should fit OK,
16) press the gear, top hat and bearing back on,
17) refit nut,
18) when the nut is tight, check the gear spins freely,
19) peen the nut,
20) fit fork to diff
21) knock old bearings out and press into new gear,
22) Clean all faces,
23) refit diff,
24) apply sealant,
25) refit housing,
26) check it spins freely,
27) put sealant on pin head,
28) and hole in casing,
29) and other hole,
30) put gear in with bearings, use rope and rule,
31) lower gear in with the new collapsible spacer between the bearings,
32) push in pin,
33) tighten intermediate nut,
34) you will need to tighten the nut until the spacer collapses, you can feel this as the drag will increase which you will feel if you keep spinning it as you tighten the nut,
35) you should see about 1 thread,
36) apply some oil and check it spins OK,
37) peen the nut,
38) apply sealant,
39) refit sump,
40) apply sealant,
41) refit hi/lo housing,
42) refit ball, spring and plug,
